The Problem:

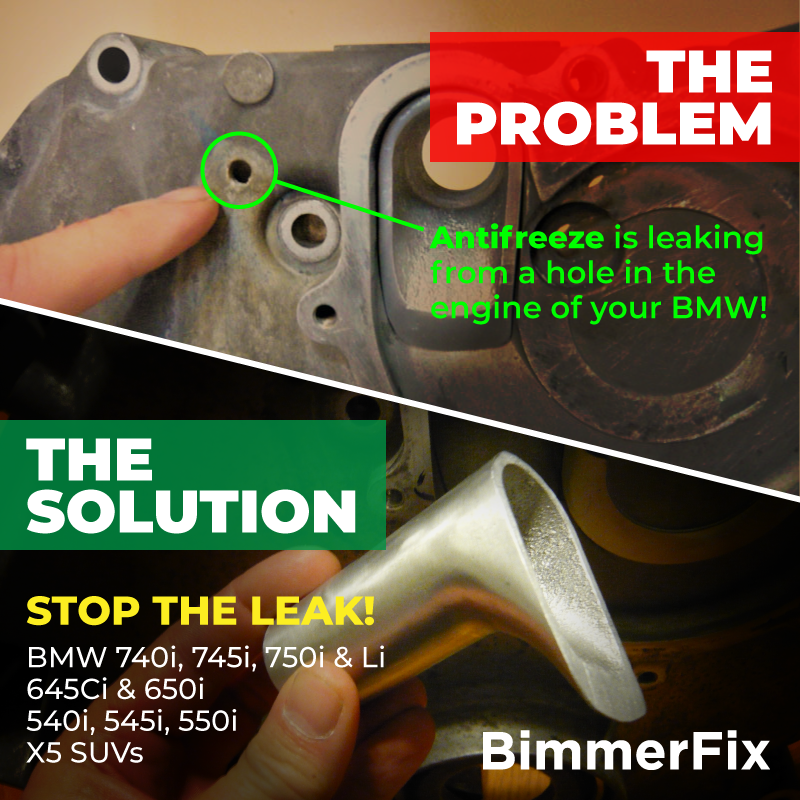

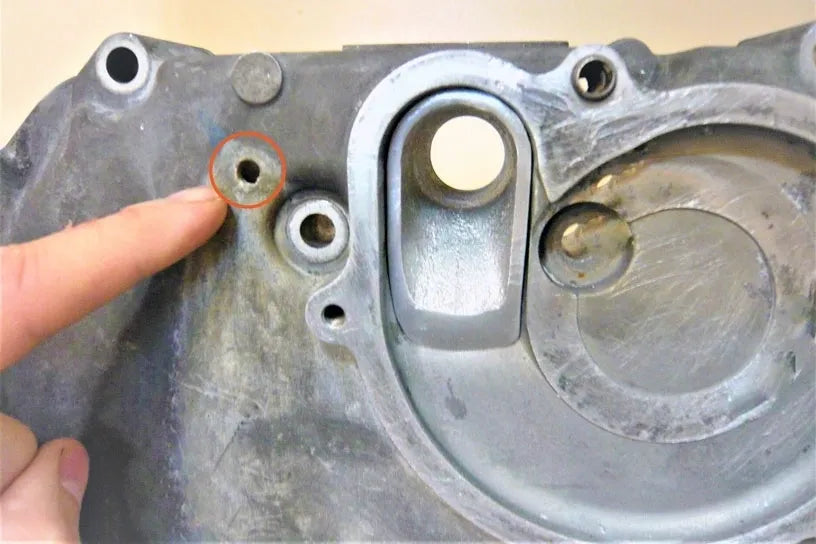

The Front Seal on the BMW N62 V8 Coolant Transfer Pipe can fail in as little as 40,000 miles. The repair on this internal engine seal requires many hours of labor and can cost thousands of dollars. Coolant is now leaking from a "weep hole" in the engine of your BMW, and we are here to help. The BMW weep hole is located next to the water pump.

The Solution:

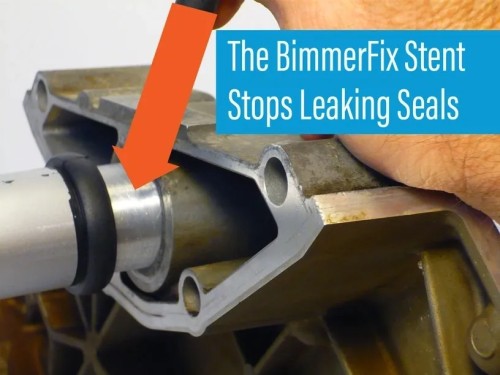

The BimmerFix Stent stops the leaking seals.

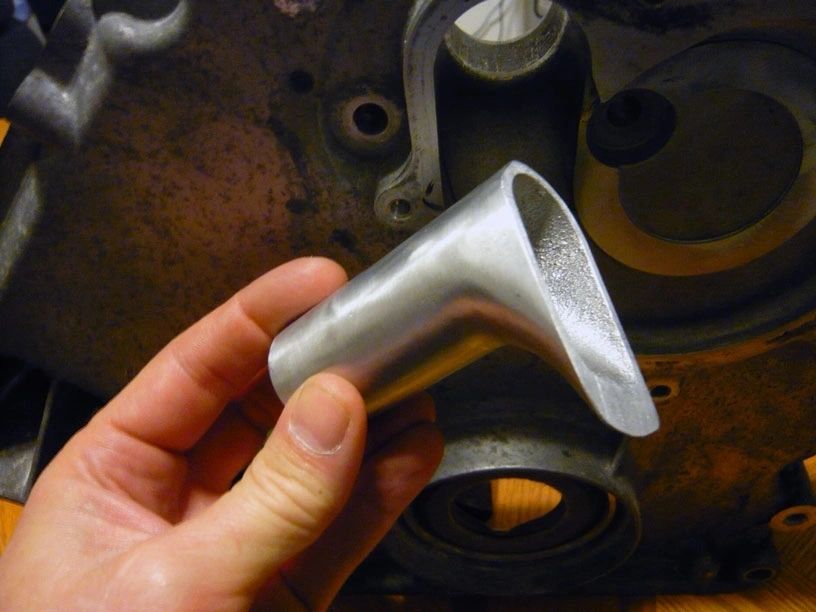

The BimmerFix Stent stops the leak in your engine by creating a metal inner lining inside the front seal of the Coolant Transfer Pipe. The BimmerFix Stent is easy to install by removing the water pump and installing the stent into the timing chain cover. There is no need to remove your BMW's valley pan or intake manifold. You do not need to install a "collapsible pipe."

BimmerFix Beats The Competition

The problem with the original coolant transfer pipe and the after-market collapsible pipe repair is that they can eventually leak from the same “weep hole” again in the future. The BimmerFix Stent is easier to install because only your BMW’s water pump needs to be removed, and BimmerFix offers a more durable method of repairing a leaking front seal on a Coolant Transfer Pipe at a lower cost. The seal created by the BimmerFix Stent is more durable because it is made of a high-strength aluminum alloy similar to the BMW engine. The BimmerFix Stent provides a metal liner and bonds to the coolant transfer and timing chain cover using the special high-temp BimmerFix Coolant Pipe Silicon Sealant. This BimmerFix Sealant can be continuously immersed in antifreeze and can withstand temperatures up to 500 degrees Celsius. The labor to install the BimmerFix Stent is approximately one hour more shop time than is required to replace your BMW’s water pump. We recommend that a new water pump be installed when installing the BimmerFix Stent, or that a BimmerFix Stent is installed in a vehicle when the water pump is being replaced, and this is an inexpensive measure that could help to prevent future failure of the front seal of the coolant transfer pipe.

The BimmerFix Coolant Pipe Repair System is designed to repair the coolant transfer pipe leak on the BMW N62 V8 is a popular BMW engine. The includes BMWs from 2001 to 2010, in such fabulous vehicles as the 735i & 735Li (E65 & E66) 740i & 740Li (E65 & E66), 745i & 745Li (E65 & E66), 750i & 750Li (E65 & E66), 645Ci & 650i (E63 & E64) , 540i (E60 & E60), 540i 545i & 550i (E60 & E61), and the X5 (E53 & E70) SUV.

When BMW originally built the N62 engine the coolant transfer pipe (part # 11 14 1 439 975) was installed through the front of the engine block before the installation of the timing chain cover. Once the engine is installed in the vehicle it is very expensive to remove the timing chain cover in order to install a new factory made BMW Coolant Transfer Pipe through the front of the engine.

This BMW Coolant Transfer Pipe is also sometimes called the BMW Crossover Pipe, BMW Water
Transfer Pipe or BMW Water Transfer Tube.

A second method was later developed, which involves accessing the coolant transfer pipe by removing the BMW’s intake manifold and valley pan. Once the intake manifold and valley pan have been removed, then the old coolant transfer pipe can be cut-out of the inside of the engine block, and a new BMW collapsible coolant transfer pipe (also called a BMW expandable coolant transfer pipe) is installed.

Several companies manufacture these collapsible coolant transfer pipes. The collapsible pipe is the most commonly used method of repairing a leaking coolant transfer pipe because it is cheaper and faster to remove the intake manifold and valley pan than the original factory method of removing the timing chain cover. The problem with both of these methods is that the front seal on both the factory installed coolant transfer pipe and the after-market “Collapsible Transfer Pipe” could eventually leak at the same place again in the future.

The BimmerFix Stent offers a more durable method of repairing a leaking front seal on a coolant transfer pipe at lower cost. The seal created by the BimmerFix Stent is more durable because it is made of high-strength aluminum alloy similar to the BMW engine. The BimmerFix Stent actually provides a metal liner and bonds to the coolant transfer and timing chain cover using the special high-temp BimmerFix Coolant Pipe Silicon Sealant. This BimmerFix Silicon Sealant is able to be continuously immersed in antifreeze, and can withstand temperatures up to 500 degrees Celsius. The labor to install the BimmerFix Stent is approximately one hour more shop time than is required to replace the water pump. In fact, we recommend that a new water pump be installed when installing the BimmerFix Stent, or that a BimmerFix Stent is installed in a vehicle when the water pump is being replaced. This is an inexpensive measure which could help to prevent future failure of the front seal of the coolant transfer pipe.

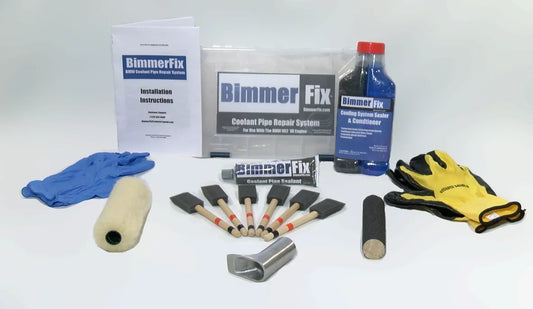

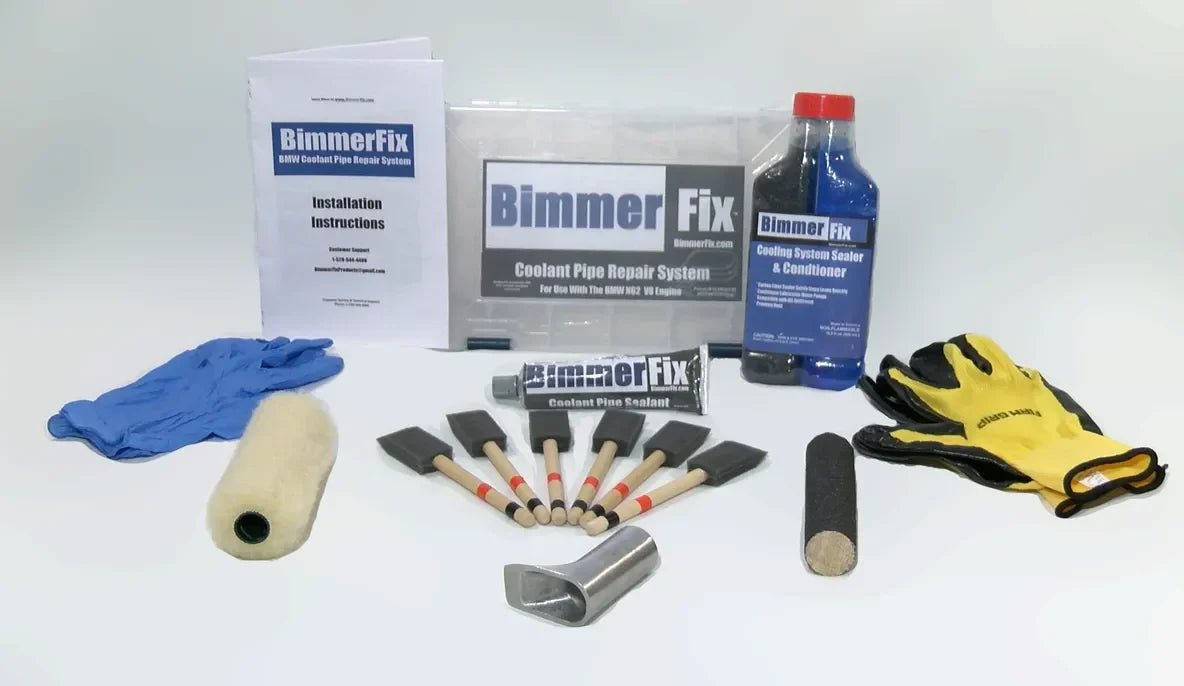

Coolant Transfer Pipe Repair Kit

  • BimmerFix Stent
  • 1 tube of BimmerFix Coolant Pipe Sealant
  • 1 bottle of BimmerFix Cooling System Sealer & Conditioner
  • 2 Round Sanding Rods
  • 1 Cleaning Rod
  • 6 Sponge Brushes
  • 2 Pair of Gloves
  • Detailed Instructions and a Case

BimmerFix Cooling System
Sealer & Conditioner

The BimmerFix Cooling System Sealer & Conditioner are not required to stop the “BMW weep hole” leak from the Front Seal on the N62 Coolant Transfer Pipe.

The BimmerFix Stent repairs the front seal leak. However, the BimmerFix Cooling System Sealer & Conditioner provides additional protection against future leaks and is designed to condition and seal the coolant transfer pipe seal, valley pan gasket seal, as well as the gaskets of the water-cooled alternator and the rear coolant passage cover seal.

The rear coolant passage cover seal is very expensive to replace because it requires the removal of the transmission and the rear exhaust system to access the seal.

CUSTOMER REVIEWS

"I repaired the weep hole leakage on my X5 4.4i N62 engine using the sleeve from Bimmerfix. It is an easy DYS project that required only removal of the water pump. The longer process was sanding the ID if the water pipe to fit the sleeve inside. Repair kit came with sanding rod and detail instruction. Great service from BimmerFix.com"
"Yeah gotta say I drive my car a TON and the stent has worked for me. I've put a lot of miles on my car since I installed the stent and to this point no issues with leaks or anything. Biggest obstacle I faced was the sanding as I had to do a lot it seemed to get the stent far enough back in the water pump opening. Other than that smooth sailing. And I must say Jeff at BimmerFix answered ALL my calls and really reassured me through the process."
"I just did the Bimmerfix solution on my 645 and its holding up very well. I frankly think its a more permanent solution than replacing the coolant pipe, at least for the front seal which is where 99% of the leaks occur. Its also relatively easy to do yourself."
"My '08 550i @ 118K started a strange, rattling noise a few days ago, and the engine stethoscope told me that it was the water pump.  While searching for information on water pump replacement, I stumbled across the BimmerFix.com product, and I was literally wide-eyed at its simplicity. It's a "WOW! Duh!" palm-to-the-forehead type of product."
"I made the repair approx. 5 weeks ago. The product arrived quickly - great seller. The product and instructions were exact. The only issue I had was the coolant pipe in my car seemed to be misaligned, I had to carefully use a half round fine file on the bottom half of the pipe. I have been driving the car daily and it is working perfectly. I would highly recommend this product. I just bought the car and I was a little upset to find this problem a month later so thank you for a job well done. By the way my car is a 2006 750li with 180,000 miles and I did use the conditioner. Thank you again."
"Like Skarv, I'm an engineer (Mechanical, pump and pipe guy, moving liquids around is my bread and butter), and I have to second everything he's said about it. The simplicity is downright elegant and it is indeed a better fix for the front seal than replacing the original pipe or even the expandable pipe. The addition of so much sealing area and the increased support for the existing seal are both huge improvements over either of the other fixes."
